Spray disinfection machine

描述

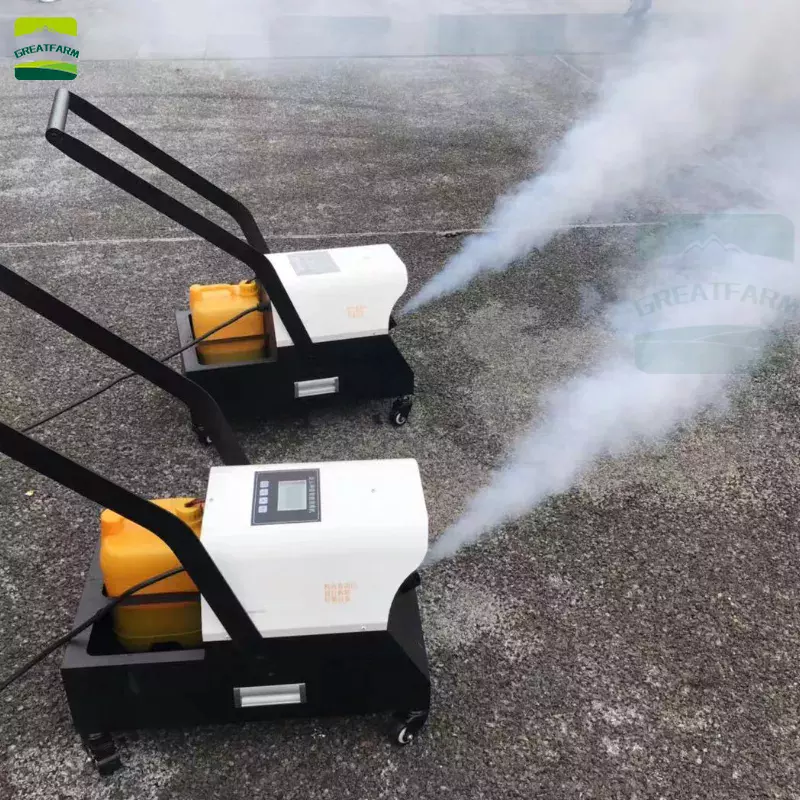

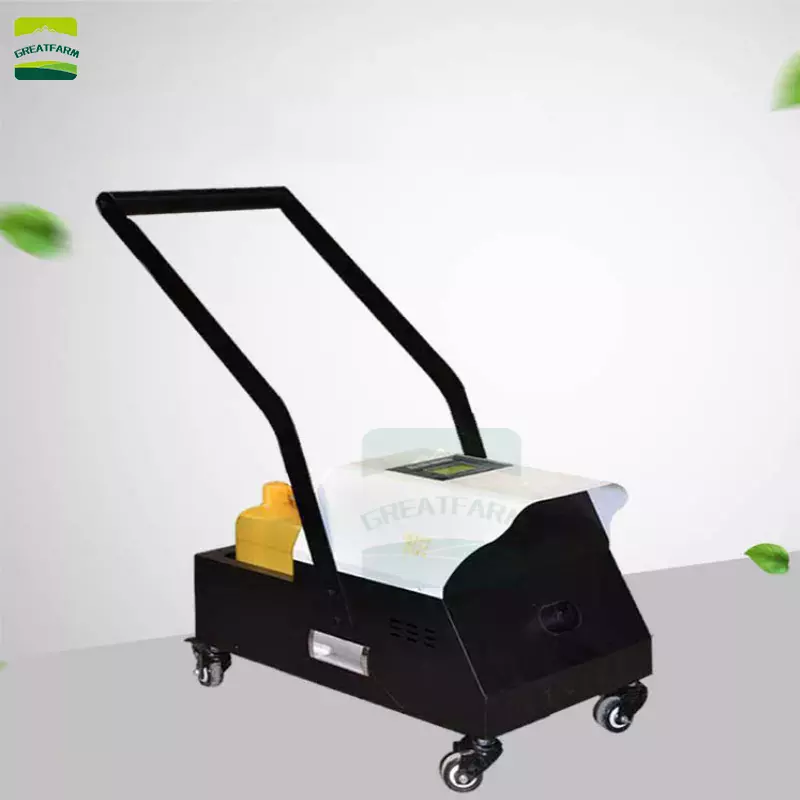

Product Name:Farm atomization disinfection machine Small Work Shop Disinfection Atomizer Electric disinfection sprayer.

Mode Of Work:The Mobile disinfection Atomizer uses atomization technology, electronic over-frequency oscillation.

Disinfection method:The oscillation frequency is 1.7MHz, which exceeds the human hearing range and has no harm to human animals. Through the high-frequency resonance of the atomizer, the medicine is thrown away from the water surface to create a natural escape. The water mist atomizes the disinfectant into fine mist particles with a diameter of 1-10 microns, and sprays it into the space to be disinfected to achieve the effect of killing airborne bacteria and pathogenic microorganisms. Compared with disinfection methods such as ultraviolet rays and formalin fumigation, the effect of sterilization on the human body has been significantly improved.

GREAT FARM DISINFECTANT MACHINE
Model	GF-FDM-01
Power	3000W
Voltage	220V
Preheat time	4min
Water tank capacity	5L

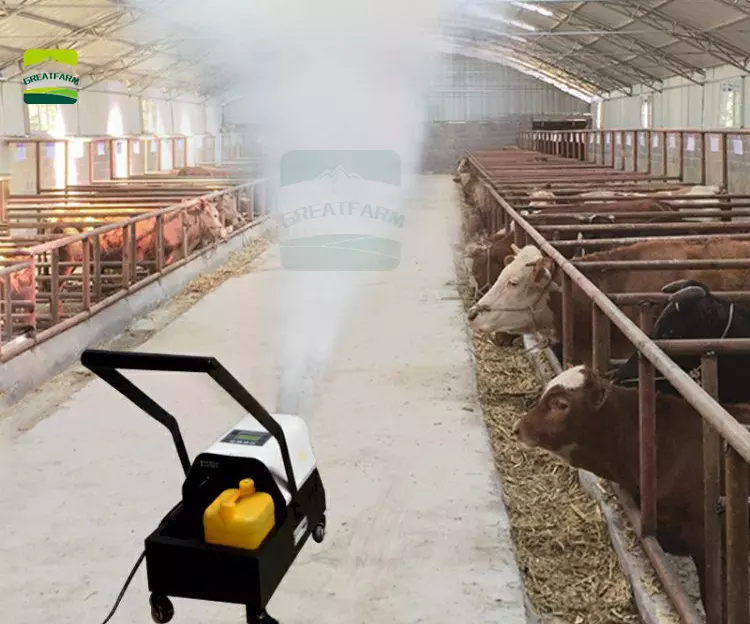

Disinfection Machine Application	Workshop,Animal Farm,Pig House,Poultry Chicken Farm Etc.
Amount of fog	400ml/min
Disinfection area	5L-1000square meter
Carton size	573635cm
Weight	16.8kg
Control method	Manual control / remote control

Product structure analysis:

1. Control buttons 2. Control layout 3. Spray holes 4. Moving wheels 5. Moving handles 6. Fixing screws 7. Disinfection pot 8. Power cord 9. Disinfection pipes 10. Hand-held bracket 11. Handle

Operation method:

1. In order to achieve a better use effect, it is necessary to increase the aerosol, water and disinfectant solution according to the ratio of 1: 3: 1, and put the mixed liquid into a 5L own water bucket and stir well.
2. After the power is turned on, press the start key, and the CNC board will show that it takes 5 minutes to prepare, and it can work after the preparation is completed.
3. Control different spraying time by pressing the button.
4. The machine comes with a remote control and the machine’s keys can also control normal work.

5.Pay attention to adding disinfectant in time, do not make the Farm atomization disinfection machine Small Work Shop Disinfection Atomizer Electric disinfection sprayer.vent work,it will damage the machine.

6.Stop spraying after shutdown, need to unplug the power plug
