Main Function:

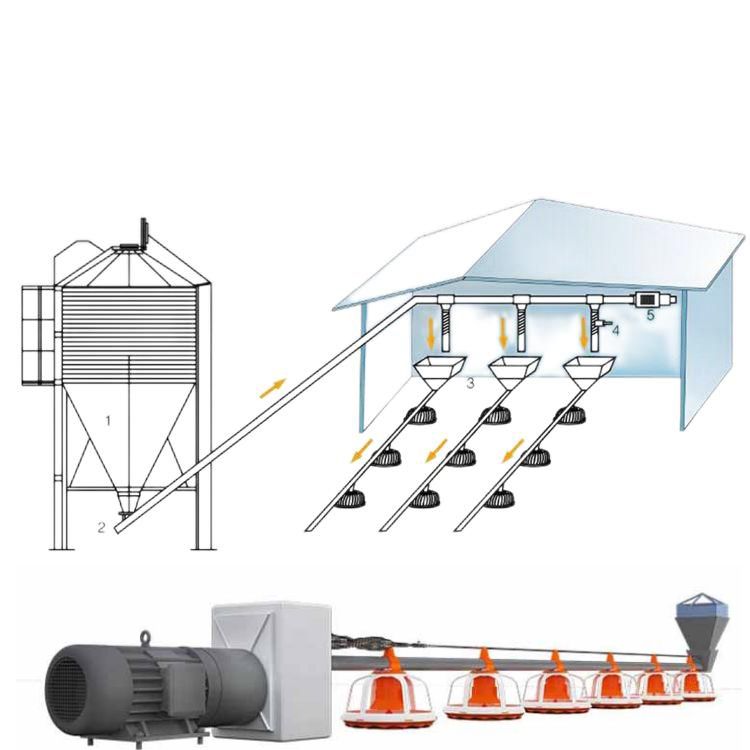

Main Feed Line System
Silo /manpower hopper is the beginning of main feed line.There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery.

Pan Feeding Line System
There is a feed sensor at the end of each feeding line which controls motor one and off to achieve automatic feed delivery to each feed pan.

Automatic Drinking Line
Supply clean water to each nipple steady,chicken can drink water from 360 degree freely

Poultry farming chicken feeder equipment Complete Automatic Broiler Feeding and Drinking line machinery

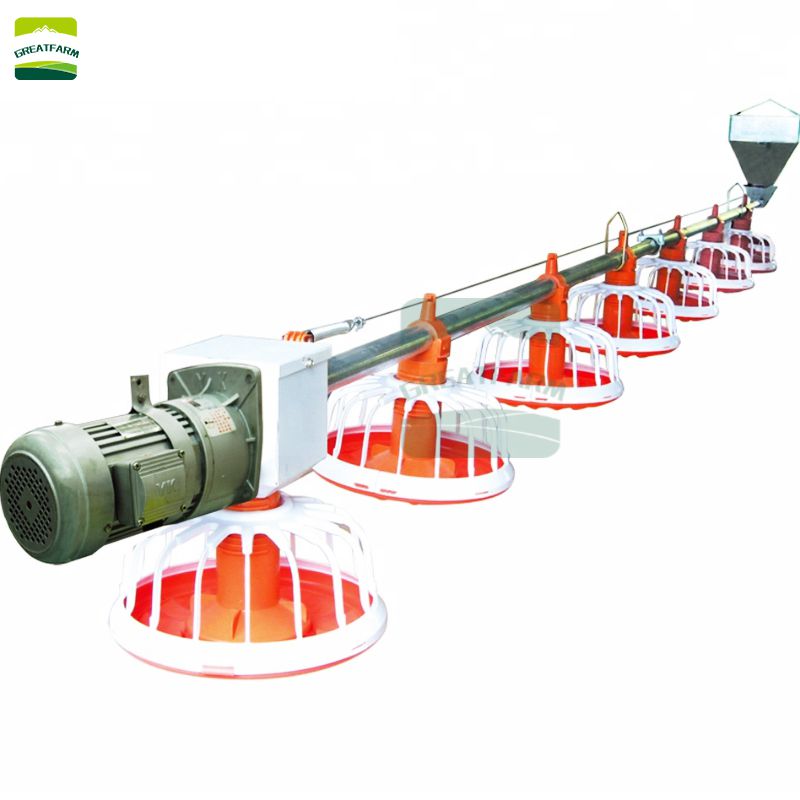

Broiler Automatic feeding system

Consists of a driving device, a hopper, a conveying pipe, an auger, trays, a suspension lifting device, an anti-perching device and a feed sensor. The main function of the system is to convey the feed in the hopper into each tray to ensure the eating of the broiler and automatically control the conveying opening/closing of the motor by the material level sensor to feed automatically.

Parameter of Feeding Line
1. High-quality special driving  motor Italy Transtechno
Power: 0.75kw, voltage: 380V, frequency: 50HZ, three-phase AC current
2. V-shaped Bin (With Hopper)
Bin Volume: 115L, hopper volume: 38L,
Material: hot-dip galvanized sheet
3, Feeding System 3M 4holes Feeding pipe
Diameter of conveying pipe: φ45mm
Material: Quality hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
Helical spring auger from South Africa feeding capacity: 450kg/h
4. Material level sensor from Israel: time delay range 0 to 2 hours

Poultry farming chicken feeder equipment Complete Automatic Broiler Feeding and Drinking line machinery

Broiler drinking system including, pressure regulator, filter, meter, Dosing device…
All the waterline technology is comes from Europe, no leaking which passed the strictly test before delivery.
The height of drinking line is adjusted by winch.
The drinking line height for broiler:
From 1 to 7days old chicks, the height of drinking line is 50 to 80mm, from 8 to 14 days, the height of drinking line is 80 to 200mm, the height of drinking line is 200 to 350mm for more than 15 days broiler.

Poultry farming chicken feeder equipment Complete Automatic Broiler Feeding and Drinking line machinery

Poultry farming chicken feeder equipment Complete Automatic Broiler Feeding and Drinking line machinery

Poultry farming chicken feeder equipment Complete Automatic Broiler Feeding and Drinking line machinery

Poultry farming chicken feeder equipment Complete Automatic Broiler Feeding and Drinking line machinery
